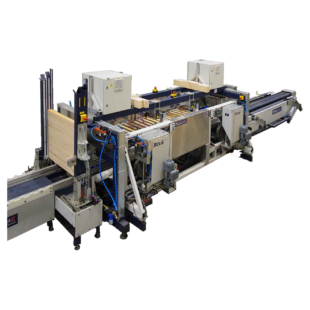

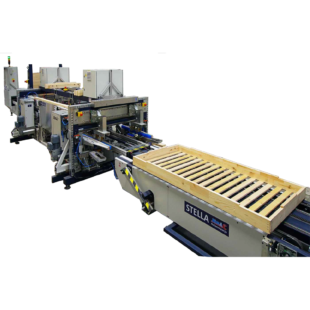

STELLA device for assembling bed frames
Installation is carried out automatically using:
Four nailers nailing the corners of a board frame - 3.1×90 nails
Two BeA Autotec stationary staplers, type K14/40, 242 series - two BIZON 14/38 staples on each side of the strip.
The finished parts automatically move beyond the outline of the machine. They can be further transported upon request.
Magazine strips can be loaded while nailing.
Frequency of loading strip magazines every 6 beds.
Loading nails every 150 minutes, staples every 50 minutes.
Service: 3 people - two of them laying the frame boards and starting the nailing cycle, and one of them collected the finished parts and delivered the elements.
Efficiency: nailing cycle approx. 50 seconds/bed, realistic result was 60 pieces/hour.
Device dimensions (L × W × H) 12 × 2.30 × H 2.20 m
Receiving table height 800 mm.
Electric power supply: 400 V – 50 Hz – 1.5 kW
Compressed air supply: 0.8 MPa
The time to change the machine to another model is from 5 to 20 minutes, depending on the scope of changes.
Dimensions of manufactured products:
The lengths of the packed box are 1900, 2000, 2100 mm
The height of the compact box is from 95 to 190 mm
Packed box widths 700, 800, 900 or 1000 mm
The design does not include: nailing triangular corners to the bottom surface of the frame, gluing frame elements, drilling holes and nailing the end rungs to the short side of the frame. These operations can also be automated upon request.
