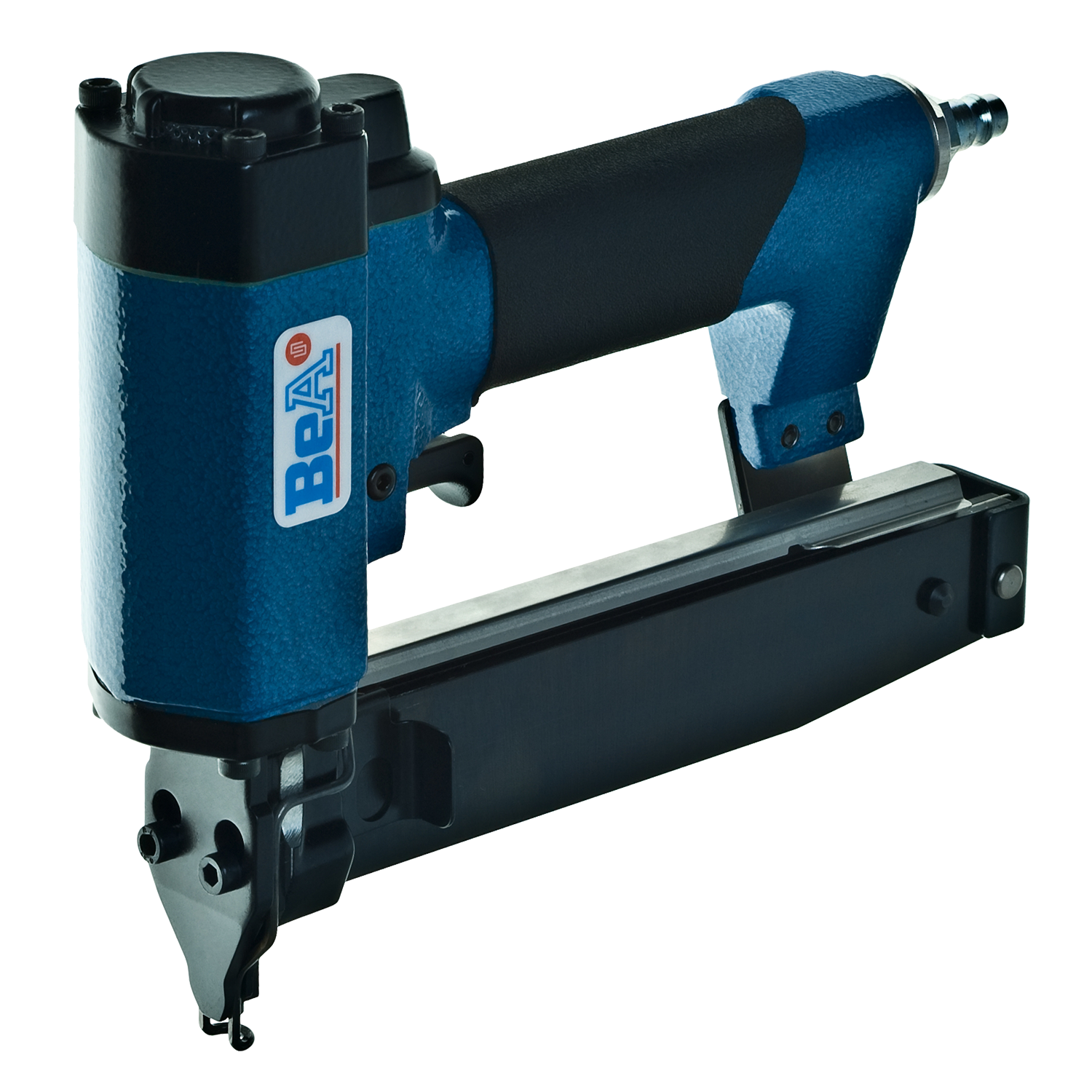

BeA SK 338-616 pinning machine

Pneumatic nail driver for SK300 head pins (1.2 mm diameter wire) with a length from 22 mm to 38 mm.

The tool is offered in two versions:
Basic model: SK 338-616C – with a touch safety enabling driving with the trigger pressed by touching the nose to the material (quick driving, like with a hammer)
Model: SK 338-616E – with a fuse for single shots, Protection against accidental penetration after touching the material – slower work, tool approved for working on a ladder, scaffolding, etc.

Dedicated sticks

Technical data

BeA SK 338-616

SK 300 sticks
length 19 – 38 mm
weight: 1.57 kg
pressure: 5-8 bar
air consumption: 0.9 liter / 6 bar
