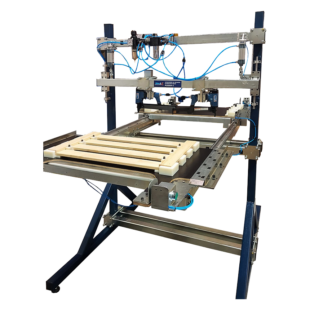

PLISZKA – shelf nailing station

Station for nailing shelves from wooden strips using two integrated BeA 92/32-612L staplers.
It is equipped with two manually moved tables with molds on which the staple driving positions are programmed, offset in two rows.

It is planned to be operated by two operators standing opposite each other.
Employees manually move the tables with elements arranged in the molds, activating the nailing cycle using buttons.

Technical data

PLISZKA – shelf nailing station

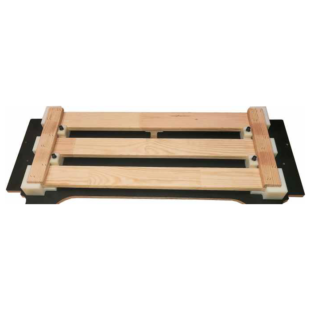

Dimensions of supported products: 650×250 ; 650×270 ; 750×370 ; 900×420 mm

BIZON staples type 92, length 25 – 32 mm
BeA 92/32-612L staplers with a long magazine

Triggering by touching the fuse into the material.
The capacity of the station for two operators is approximately 1,200 pieces per shift.

Working pressure of compressed air: 5-7 bar
The device is powered only by compressed air, the nailing program is carried out pneumatically.

Station dimensions: length x width x height 2000×1500×1800 mm
Weight approx. 200 kg
