Pneumatic upholstery tables TB

Stable, durable, solid construction.
All movable joints are equipped with grease nipples.
Height adjustment using foot levers located on both sides of the table, programmable stopping point on request.
Pneumatic system with a lock that prevents the table from falling after disconnecting the compressed air.

On request:
– position stabilization, hydraulic motion controller prevents "rocking" caused by the compressibility of air in the pneumat actuator.
– safety frame, touch switch under the table top, preventing crushing of objects or operator's limbs remaining within the outline of the table top when lowering

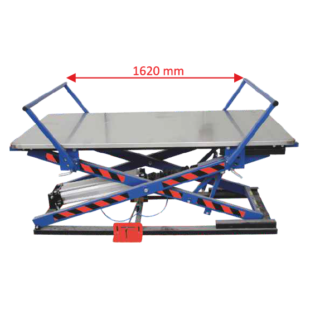

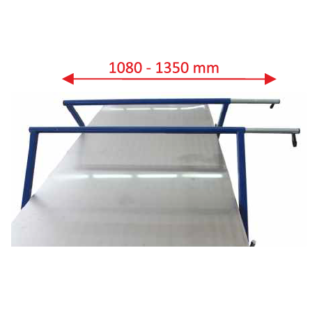

– brackets (R) – arms above the table top, adjustable in three positions. The arms facilitate access to the bottom of the furniture without having to turn it over

Order spare parts

Technical data

Pneumatic upholstery tables TB

TB tables – pneumatic drive, actuator 125-600 mm, with scissor lifting system.
Lifting height: from 320 mm (TBO 410) to 1280 mm (TBO 1190)
Maximum load capacity: 160 kg; TBO – 100 kg
130 kg for the TBM version (base 1600×850 mm)

Table weight: 150 kg
Base dimensions: 1850×700 mm
Working pressure: 6 bar
Lifting/lowering speed: 15 cm/s

Countertops offered:
2000×900 mm, top covered with carpet fabric (W) and three stainless steel glides that facilitate moving the furniture and serve to dissipate electrostatic charges.
1950×950 mm, countertop covered with stainless steel sheet (NR)
1600×850 mm, TBM version
2000×1000 mm, cut corners, waterproof plywood (for turntable)
On request: a different size of top or a table without a top

As standard, there is one container for upholstery accessories installed under the countertop, additional containers can be installed on request
